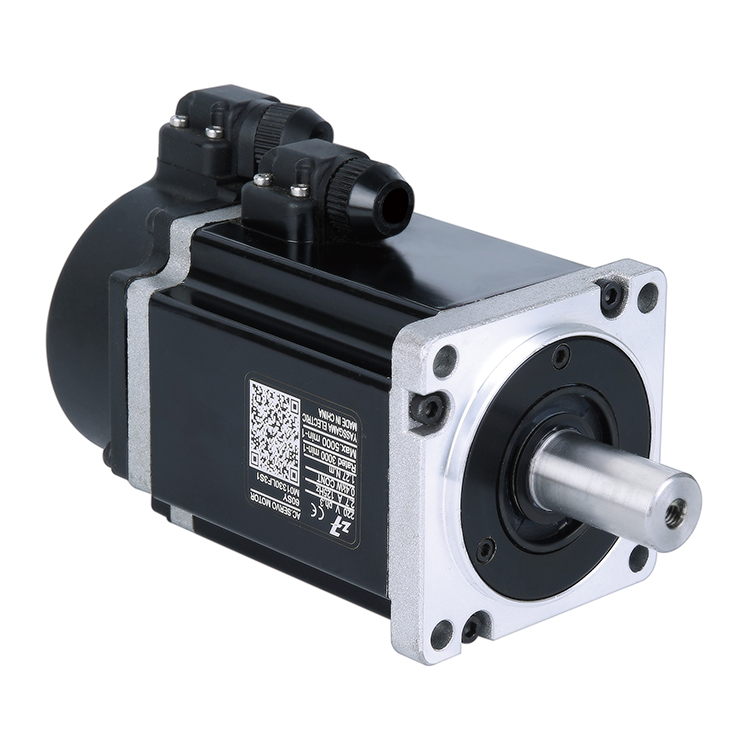

60mm (S1) Series AC servo motor

Model

Torque

0.6~1.9N.m

Rated speed

5000rpm

Rated voltage

220V

Main Features

    Number of pole pairs: 5

    Incremental encoder line: 2500/5000PPR

    Absolute encoder:17bit

    Absolute class: B

    Safety Class: IP65

    Insulation and voltage resistance: AC1500V,1Minute

    Insulation resistance: DC500V, 10MΩ above

    Structure: Self-cooling

    Vibration: Under 2.5G

    Altitude: Under 1000m


img_banner_arrow_rleft
img_banner_arrow_right

Product Details

60SY-M**S1 permanent magnet AC servo motor

Motor model60SY-M00630S1-560SY-M01330S1-560SY-M01930S1-5
Rated power (KW)200400600
Input voltage (V)220220220
Rated current (A)1.352.73.5
Rated torque (N.m)0.6371.271.91
Maximum torque (N.m)1.913.815.4
Rated speed (rpm)300030003000
Maximum speed (rpm)500050005000
Rotor inertia (Kg. m ²)0.245X10-40.418X1040.65X104
MAX. Rotor inertia (Kg. m ²)0.45X10-0.7X10-40.95X10-4
Motor weight (Kg)Z:1.25kg  F:0.85kg    T:1.05kgZ:1.7kg  F:1.3kg    T:1.5kgZ:2.1kg  F:1.65kg    T:1.9kg
Motor length(mm)Regular servoL94mm108mm125mm
LL129.5mm141mm160.5mm
High inertia servoL106mm120mm137mm
LL141.5mm153mm172.5mm


Winding connection table

Winding wiringWinding leadUVWPEBrake leadbrakingbraking
(Aviation plug) socket No2341External   band brake socket No12
Note: braking voltage DC24V (no polarity requirement)Number   of built-in band brake socket56


Note: DC24V brake voltage (no polarity requirements)

Encoder connection table

Encoder   wiringSignal   definition5VOVA+B+Z+A-B-Z-PE
Socket No234567891
Definition of absolute value signalPEE-E+SD-GND0VSD+Vcc5V

Socket No1234567





Welcome to contact us for other series ac servo motor.
